Vehicle All Round Birds Eye View
HD Monitoring System

£1,096.80 inc VAT

  • Four 180 degrees ultra-wide fish-eye cameras, HD video recording resolution up to 1080p.
  • 3D video de-interlacing and noise reduction technology for CVBS signal decoding.
  • Seamless video merging based on dual-core ARM CPU and hardware high efficiency acceleration engine.
  • Support alternative recording media – TF card or USB disk.
  • Suitable for all types of vehicle – HGVs, Trucks, Buses.
  • Typical length of vehicle 4m to 13m.
  • Simple to set up and use.

Ideal for London Direct Vision Standard and HGV Safety Permit (DVS).

Description

Dual Monitor View – Birds & Forward



Birds eye view virtual images available of various vehicle types.

  • Truck (as image above)
  • Bulldozer
  • Road Roller
  • Excavator
  • Tracked Excavator
  • Other images can be added at extra cost.
more info about virtual vehicle types……..
360 deg Birds Eye View System Control
360 deg Birds Eye View System Control

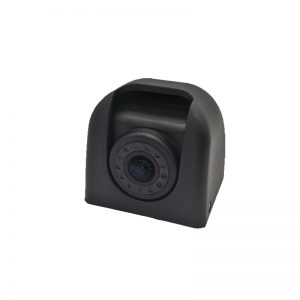

180deg HD camera x 4
180deg HD camera x 4
All Round View Camera System Wires & Plugs
All Round View Camera System Wires & Plugs Included
Video Interface BMW Mini connector
Input / Output Impedance 75Ω
Amplitude Typical 1Vpp, 1.2Vpp Maximum
Bandwidth 27M
Sampling Frequency 74.25MHZ
Resolution 1280X720@30fps
Signal standard AHD1.0(Nextchip)
SNR 70dB
High beam Optional
Left/Right Turning Blinker Yes
Reversing Lamp Yes
BM250E Bosch
Algorithm H.264 Baseline@L3.1
Resolution 1080p@15fps
Bitrates 5Mbps,3Gbyte/Hour
Recording Media USB Disk(High Priority)/TF
TF CARD 32G SDIO3.0/SDIO2.0
USB Disk Max 128G USB2.0
4-CH DVR + SVM mode 350mA
4-CH DVR mode 600mA
Sleep Mode <10mA
Dimension 123*81*25mm(Host Metal box)
Waterproof rating IP68
Normal Working -30℃~+85℃
Storage -40℃~+105℃
Relative Humidity 0~95%
Working Voltage 9.5V~36V
